Medical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable Blades

Product Categories
Xian Haiye Medical Equipment Co.,Ltd
Contact Now

Medical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable Blades

Brand Name : HAIYE MEDICAL

Model Number : HYHJ-KC

Certification : CE/FDA/ISO13485/ISO9001

Place of Origin : Shaanxi China

MOQ : 1SET

Price : 900-1500USD/SET

Payment Terms : T/T

Supply Ability : 1000sets

Delivery Time : 5-8 work days

Packaging Details : cartoon/protective box

Display : 3 "TFT color screen

Material : 316 medical Stainless Steel

Resolution : 960*480

Carema : CMOS,double anti fog

Light Source : LED >/=3000lux

Battery life : rechargeable>800 times

Stand by : continous use 6h

Working tem : -5°~ 40°C

Viewing angle : 70°± 2°

Depth of field : 3~100mm

Warranty : 1 Year

OEM service : Yes, qty > 50 units

Contact Now

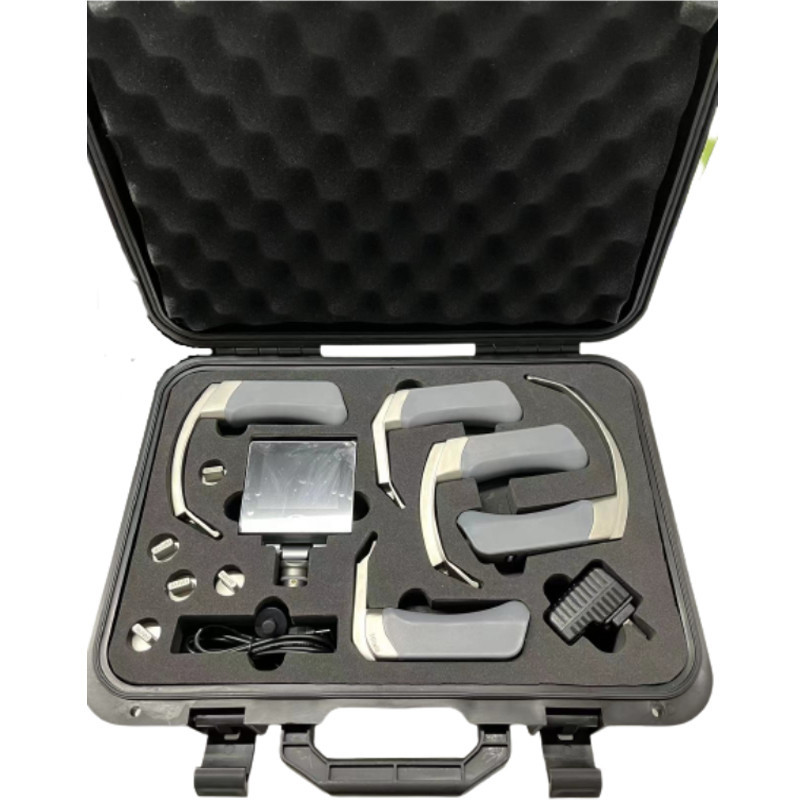

Hot Selling Medical Anesthesia Handheld Visual Video Laryngoscope with 5 Reusable Blades

  • Powder Button: On Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

Medical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable BladesMedical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable BladesMedical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable BladesMedical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable Blades

Application

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).

Technical feature

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Carema Resolution 1600 x 1200
Viewing angle 70°± 2°
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
laryngoscope 5 Reusable Blades applicable to all oral structure

Power Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V, 2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C

Medical Anesthesia Handheld Visual Video Laryngoscope With 5 Reusable Blades

Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are wiedly used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...

Welcome to inquiry if you have any interests!

OEM order is acceptable.
